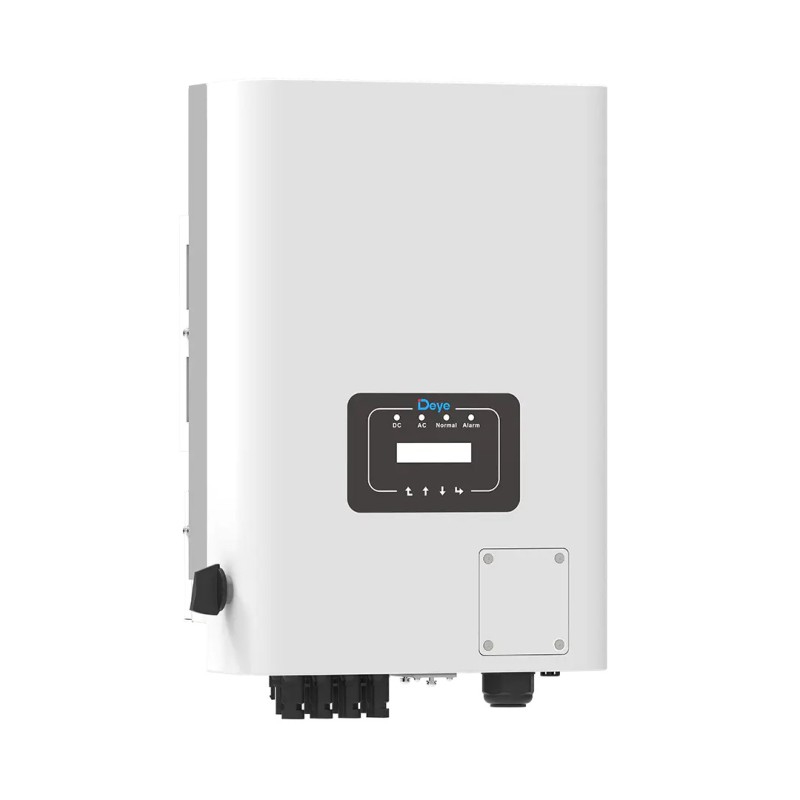

Deye10 kW Monofaz On-Grid String İnvertör

Write a review

₺0,00

Vergi dahil

2 adet MPPT (Maksimum Güç Noktası Takibi) izleyici
Maksimum verimlilik %97,5'e kadar
Sıfır geri besleme uygulaması
VSG uygulaması (Sanal Senkron Jeneratör)
Dizi akıllı izleme (isteğe bağlı)
Geniş çıkış gerilimi aralığı
Anti-PID işlevi (isteğe bağlı)
80V'luk düşük başlangıç gerilimi

Mesafeli Satış Sözleşmesi

(satış sözleşmesi içn tıklayın)

Kişisel Veriler Politikası

(Politikayı okumak için tıklayınız)

İptal ve İade Koşulları

(İptal ve iade şartları için tıklaytınız)

Guarantee safe & secure checkout

Model	SUN-3K-G06P3-EU-BM2-P1	SUN-4K-G06P3-EU-BM2-P1	SUN-5K-G06P3-EU-BM2-P1	SUN-6K-G06P3-EU-BM2-P1	SUN-7K-G06P3-EU-BM2-P1	SUN-8K-G06P3-EU-BM2-P1	SUN-9K-G06P3-EU-BM2-P1	SUN-10K-G06P3-EU-BM2-P1	SUN-12K-G06P3-EU-BM2-P1	SUN-15K-G06P3-EU-BM2-P1
PV String Input Data
Max. PV Input Power (kW)	4.5	6	7.5	9	10.5	12	13.5	15	18	22.5
Max. PV Input Voltage (V)	1100
Start-up Voltage (V)	140
MPPT Voltage Range (V)	120-1000
Rated PV Input Voltage (V)	600
Max. Operating PV Input Current (A)	20+20									20+26
Max. Input Short Circuit Current (A)	30+30									30+39
No. of MPP Trackers/ No. of StringsperMPP Tracker	2/1+1									2/1+2
AC Output Side
Rated AC Output Active Power (kW)	3	4	5	6	7	8	9	10	12	15
Max.AC Output Apparent Power (kVA)	3.3	4.4	5.5	6.6	7.7	8.8	9.9	11	13.2	16.5
Rated AC Output Current (A)	4.6/4.4	6.1/5.8	7.6/7.3	9.1/8.7	10.7/10.2	12.2/11.6	13.7/13.1	15.2/14.5	18.2/17.4	22.8/21.8
Max. AC Output Current (A)	5/4.8	6.7/6.4	8.4/8	10/9.6	11.7/11.2	13.4/12.8	15/14.4	16.7/16	20/19.2	25/24
Rated Output Voltage/Range (V)	220/380V, 230/400V 0.85Un-1.1Un
Grid Connection Form	3L/N/PE
Rated Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5%ln
Eﬃciency
Max. Efﬁciency	98.1%		98.2%		98.3%					98.5%
Euro Efﬁciency	97.5%		97.6%		97.8%					98%
MPPTEfﬁciency	>99%
Equipment Protection
DC Reverse Polarity Protection	Yes
AC Output Overcurrent Protection	Yes
AC Output Overvoltage Protection	Yes
AC Output Short Circuit Protection	Yes
Thermal Protection	Yes
Insulation Impedance Detection	Yes
DC Component Monitoring	Yes
Arc Fault Circuit Interrupter (AFCI)	Optional
Anti-islanding Protection	Yes
Residual Current Detection	Yes
Surge Protection Level	TYPE II(DC),TYPE II(AC)
DC Switch	Yes
Interface
Communication Interface	RS485/RS232
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (°C)	-25 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude (m)	4000m
Noise (dB)	<45
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)	283×525×178 (Excluding Connectors and Brackets)									283×525×188
Weight (kg)	11.5									12
Warranty	5 Years
Type of Cooling	Natural Cooling
Grid Regulation	IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98,G99,VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
